NEW Composite Tail Rotor Blades:

Composite Tail Rotor Blades for Bell 206 JetRangers Fitted with New Bearings:

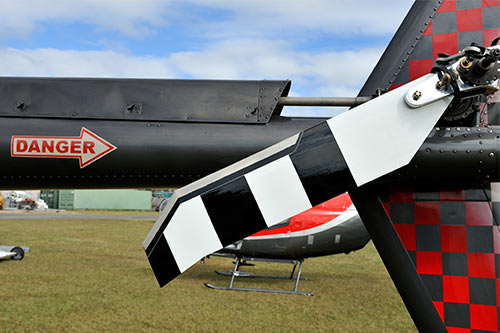

The AMT-206-1 composite tail rotor blade is a direct replacement for Bell 206A and 206B series helicopter tail rotor blades. Now fitted with a new style of feathering bearings manufactured by KAMATICS. These bearings provide a longer life expectancy, with a patented lining that provides lighter pedal loads and a higher level of chemical resistance, compared to that of the standard fabric teflon lined bearings.

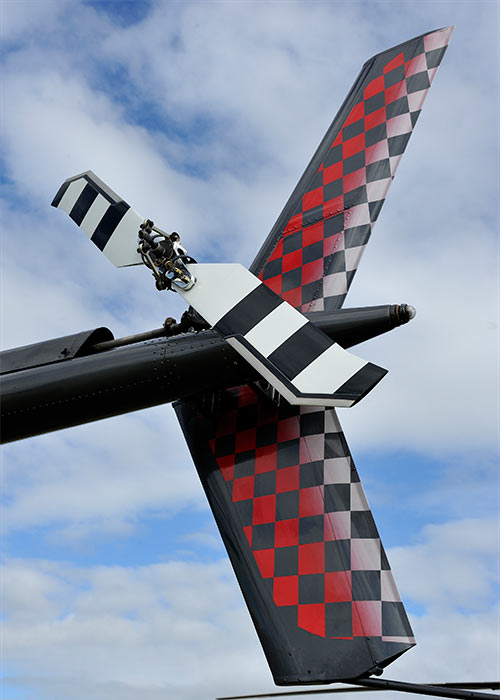

The AMT-206-1 tail rotor blade has a non-symmetrical airfoil section and incorporates a swept tip. The T/R Blade is primarily fabricate from uni-directional Graphite (carbon fibre) and Aramid (Kevlar™) continuous fibres suspended in an epoxy matrix and is fitted with a nickel abrasion strip on the leading edge. The abrasion strip is bonded on using a urethane adhesive.

The AMT-206-1 composite tail rotor blades have a 30% cost advantage, twice the lifespan, higher strength and thrust, and a substantial noise reduction, making them safer and ideal for helicopter operators flying in noise-sensitive areas like national parks and built-up areas.

AMT-206-1 T/R Blade Features:

  • Fitted with new style feathering bearings manufactured by KAMATICS
  • 5,000-hour time life, twice the life of the standard OEM blade
  • 30% lower hourly operating costs compared to OEM blades
  • Higher margin of safety due to increased strength
  • Corrosion resistant and impervious to saltwater
  • Replaceable bearings and abrasion strips
  • Significant noise reduction, 68% reduction over OEM Blades
  • Improved ground clearance
  • Tested for over 51 million cycles

New Composite Tail Rotor Blades

Available Now for the Bell 206A/B

AMT-206-1 Tail Rotor Blade Benefits:



  • Fitted with new style feathering bearings manufactured by KAMATICS (KAMAN Aerospace)
  • 5,000-hour time life, twice the life of the standard OEM blade
  • 30% lower hourly operating costs compared to OEM blades
  • Higher margin of safety due to increased strength
  • Corrosion resistant and impervious to saltwater
  • Replaceable bearings and abrasion strips
  • Significant noise reduction, 68% reduction over OEM Blades
  • Improved ground clearance
  • Tested for over 51 million cycles

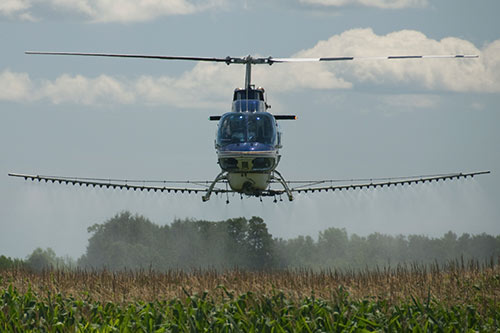

Applications:

AMT-206-1 Replaces tail rotor blades for 206A and 206B series helicopters. Part numbers replaced includes:

  • 206-016-201-001     206-016-201-107
  • 206-016-201-113     206-016-201-127
  • 206-016-201-131     206-016-201-135
  • 206-016-201-103     206-016-201-125
  • 206-016-201-133     206-016-201-137
  • 206-010-750-109     2062200-301
T/R Blade Manuals & Documentation:

Manuals and documentation are available for download as an Adobe PDF:

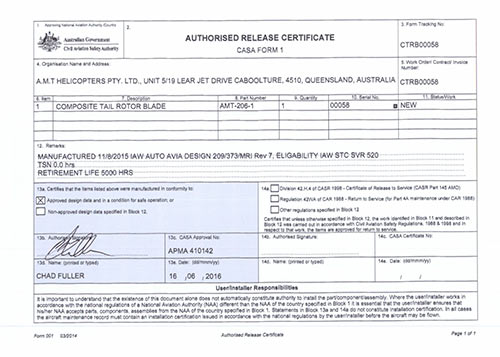

The AMT-206-1 composite blade is a life limited, flight critical component and as such it is necessary to track its service history. This is accomplished by the use of a Blade Log CTRB-F19 (History Card) supplied with the blade by A.M.T. Helicopters Pty Ltd at the initial time of purchase.
